7  Python interoperability

7.1 Introduction

Methods discussed in this book are usually available as either R or Python packages. Ideally, users should be able to leverage the full range of available tools for their analyses. Methods should be selected based on scientific merit (ideally demonstrated by neutral benchmarks), and independent of having been implemented in a given programming language (R or Python) or framework (e.g. Bioconductor or Seurat).

For single-cell and spatial omics data analysis, being able to leverage different ecosystems is especially powerful. On the one hand, Python offers superb infrastructure for image analysis and machine learning-based approaches. On the other hand, the R programming language has been historically dedicated to statistical computing; as a result, many modern R methods for spatial omics data build on a solid foundation of tools for spatial statistics and statistical modeling in general.

R’s application to statistical analysis of spatial data dates back decades, primarily in epidemiological and geospatial research. As a result, various tools for spatial analyses have been established. For example, sp provides a “coherent set of classes and methods for […] points, lines, polygons, and grids”; spatstat and, more recently, sf provide tools for spatial point pattern and vector data, respectively.

Different data structures, although standardized within a given framework, make switching between languages and tools somewhat cumbersome. In the realm of single-cell and spatial omics, all Bioconductor tools are built around SummarizedExperiment-derived classes, while Seurat (Hao et al. 2023), Giotto (Chen et al. 2025), and VoltRon each rely on their own object definitions. In Python, Scanpy (Wolf, Angerer, and Theis 2018) and Squidpy (Palla et al. 2022) use AnnData. Attempts to alleviate the problem are being made – e.g. zellkonverter, anndataR (Deconinck et al. 2025), and functions from Seurat allow for conversion between Python’s AnnData and R/Bioconductor’s SingleCellExperiment or SpatialExperiment.

On a higher level, tools that enable interoperability between programming languages have become available. For example, reticulate provides an R interface to Python, including support to translate between objects from both languages; basilisk facilitates Python environment management within the Bioconductor ecosystem, and can also be interfaced with reticulate; and Quarto can generate dynamic reports from code in different languages.

Quarto is the successor to R Markdown (by Posit, formerly known as RStudio). Similar to .Rmd files, .qmd files can include scientific content (e.g. cross-referencing, LaTeX-based equations), and can be published in multiple output formats (HTML, PDF, etc.). This book is built using Quarto.

In this chapter, we demonstrate examples showing how to set up Python environments and interact with anndata objects in R, using either a virtual or Conda environment, together with reticulate or basilisk and anndataR.

7.2 Dependencies

library(anndataR)
library(basilisk)
library(jsonlite)
library(VisiumIO)
library(OSTA.data)
library(reticulate)
library(SpatialExperiment)

7.3 Python environment and reticulate

We here set up a virtual environment to interact with Python anndata objects in R. In order to build this book programmatically, we install Python and pip dependencies from scratch using reticulate.

However, if you are following this example on a laptop or another system, it may be easier to specify an existing Python installation to use instead. This will avoid cluttering your system with additional Python installations; see the below section to, e.g., activate an existing Conda environment.

7.3.1 Set up virtual environment

First, we create a virtual environment, installing Python dependencies required in this chapter, as well as Chapter 22.

req <- c('access==1.1.9', 'affine==2.4.0', 'anndata==0.9.2', 'anndata2ri==1.3.1', 'attrs==23.1.0', 'backports.zoneinfo==0.2.1', 'beautifulsoup4==4.12.2', 'certifi==2023.11.17', 'cffi==1.16.0', 'charset-normalizer==3.3.2', 'click==8.1.7', 'click-plugins==1.1.1', 'cligj==0.7.2', 'commot==0.0.3', 'contourpy==1.1.1', 'cycler==0.12.1', 'decorator==4.4.2', 'deprecation==2.1.0', 'esda==2.4.3', 'fiona==1.9.5', 'fonttools==4.45.1', 'gensim==4.3.2', 'geopandas==0.13.2', 'get-annotations==0.1.2', 'giddy==2.3.4', 'h5py==3.10.0', 'idna==3.4', 'igraph==0.10.8', 'importlib-metadata==6.8.0', 'importlib-resources==6.1.1', 'inequality==1.0.0', 'Jinja2==3.1.2', 'joblib==1.3.2', 'karateclub==1.3.3', 'kiwisolver==1.4.5', 'leidenalg==0.10.1', 'Levenshtein==0.23.0', 'libpysal==4.7.0', 'llvmlite==0.41.1', 'mapclassify==2.6.0', 'MarkupSafe==2.1.3', 'matplotlib==3.7.4', 'mgwr==2.1.2', 'momepy==0.6.0', 'mpmath==1.3.0', 'natsort==8.4.0', 'networkx==2.6.3', 'numba==0.58.1', 'numpy==1.22.4', 'packaging==23.2', 'pandas==1.3.5', 'patsy==0.5.3', 'Pillow==10.1.0', 'platformdirs==4.0.0', 'plotly==5.18.0', 'pointpats==2.4.0', 'POT==0.9.1', 'PuLP==2.7.0', 'pycparser==2.21', 'pygeos==0.14', 'PyGSP==0.5.1', 'pynndescent==0.5.11', 'pyparsing==3.1.1', 'pyproj==3.5.0', 'pysal==23.7', 'python-dateutil==2.8.2', 'python-igraph==0.10.8', 'python-Levenshtein==0.23.0', 'python-louvain==0.16', 'pytz==2023.3.post1', 'quantecon==0.7.1', 'rapidfuzz==3.5.2', 'rasterio==1.3.9', 'rasterstats==0.19.0', 'requests==2.31.0', 'rpy2==3.5.14', 'Rtree==1.1.0', 'scanpy==1.9.6', 'scikit-learn==1.3.2', 'scipy==1.10.1', 'seaborn==0.12.2', 'segregation==2.5', 'session-info==1.0.0', 'setuptools==68.2.2', 'shapely==2.0.2', 'simplejson==3.19.2', 'six==1.16.0', 'smart-open==6.4.0', 'snuggs==1.4.7', 'soupsieve==2.5', 'spaghetti==1.7.4', 'spglm==1.0.8', 'spint==1.0.7', 'splot==1.1.5.post1', 'spopt==0.5.0', 'spreg==1.4', 'spvcm==0.3.0', 'statsmodels==0.14.0', 'stdlib-list==0.10.0', 'sympy==1.12', 'tenacity==8.2.3', 'texttable==1.7.0', 'threadpoolctl==3.2.0', 'tobler==0.9.0', 'tqdm==4.66.1', 'tzlocal==5.2', 'umap-learn==0.5.5', 'urllib3==2.1.0', 'zipp==3.17.0')
install_python(version=ver <- "3.8.18")
virtualenv_create(envname=env <- "OSTA", python=ver, packages=req)
use_virtualenv(env, required=TRUE)

7.3.2 Using Conda

Alternatively, an existing Conda environment – including the corresponding Python installation and software dependencies – could be used as follows:

# path to Conda binary
bin <- ".../bin/conda"
options(reticulate.conda_binary=bin)
# activate environment
use_condaenv("<name>")

7.3.3 Using basilisk

Alternatively, we can use basilisk to install and manage Python environments. This is an alternative to setting up a Conda environment with an existing Python installation. Using basilisk provides a self-contained environment, which helps avoid problems due to interactions with other environments on your system, and provides a higher level of reproducibility. This is especially useful for package development by advanced users. However, setup may be more challenging in some cases. A minimal example is provided here for completeness:

# set up environment using 'basilisk'
env <- BasiliskEnvironment(
    pkgname="base",
    envname="basilisk",
    pip="numpy==2.4.0",
    packages="python=3.12")
# activate virtual environment
use_virtualenv(obtainEnvironmentPath(env))

7.4 Interfacing between languages

7.4.1 SingleCellExperiment

7.4.1.1 Calling Python

After configuring Python, R commands can now be run using reticulate; for more details on syntax, see here.

Note that running code in this way comes with a small overhead of starting up a Python session in the background. But this is typically small compared to the runtime required to run computation-heavy methods, or when analyzing large-scale single-cell and spatial data (hundreds of thousands of cells or more).

import scanpy
id = "V1_Mouse_Brain_Sagittal_Posterior"
ad = scanpy.datasets.visium_sge(sample_id=id)

##
  0%|          | 0.00/9.26M [00:00<?, ?B/s]
 79%|#######8  | 7.30M/9.26M [00:00<00:00, 76.6MB/s]
100%|##########| 9.26M/9.26M [00:00<00:00, 88.3MB/s]
##
  0%|          | 0.00/20.1M [00:00<?, ?B/s]
 36%|###5      | 7.20M/20.1M [00:00<00:00, 75.5MB/s]
100%|##########| 20.1M/20.1M [00:00<00:00, 128MB/s]

ad.var_names_make_unique()
ad

##  AnnData object with n_obs × n_vars = 3355 × 32285
##      obs: 'in_tissue', 'array_row', 'array_col'
##      var: 'gene_ids', 'feature_types', 'genome'
##      uns: 'spatial'
##      obsm: 'spatial'

7.4.1.2 Continuing in R

We can access any of the variables above in R. For basic outputs, this works out of the box:

range(py$ad$obs$array_row)

##  [1]  6 72

reticulate also supports a few direct type conversions (e.g. dictionary \(\leftrightarrow\) named list). In the example demonstrated here, we use anndataR to convert from AnnData to SingleCellExperiment:

(sce <- py$ad$as_SingleCellExperiment(x_mapping="counts"))

##  class: SingleCellExperiment
##  dim: 32285 3355
##  metadata(1): spatial
##  assays(1): counts
##  rownames(32285): Xkr4 Gm1992 ... AC234645.1 AC149090.1
##  rowData names(3): gene_ids feature_types genome
##  colnames(3355): AAACAAGTATCTCCCA-1 AAACACCAATAACTGC-1 ...
##    TTGTTTCATTAGTCTA-1 TTGTTTCCATACAACT-1
##  colData names(3): in_tissue array_row array_col
##  reducedDimNames(1): spatial
##  mainExpName: NULL
##  altExpNames(0):

7.4.1.3 Back to Python

We can also do the reverse, i.e., go from R’s SingleCellExperiment to Python’s AnnData:

(ad <- as_AnnData(sce, x_mapping="counts"))

##  InMemoryAnnData object with n_obs × n_vars = 3355 × 32285
##      obs: 'in_tissue', 'array_row', 'array_col'
##      var: 'gene_ids', 'feature_types', 'genome'
##      uns: 'spatial'
##      obsm: 'spatial'

7.4.2 SpatialExperiment

Since the SpatialExperiment class extends SingleCellExperiment (see Chapter 3), conversion operations discussed above are also applicable to SpatialExperiment. However, to accomplish a full conversion from the AnnData object, we need to manually insert the spatial information using reticulate directly.

7.4.2.1 Starting in R

For this use case with SpatialExperiment, we will use the dataset from Janesick et al. (2023), which includes Visium measurements on human breast cancer tissue.

id <- "Visium_HumanBreast_Janesick"
pa <- OSTA.data_load(id)
dir.create(td <- tempfile())
unzip(pa, exdir = td)
obj <- TENxVisium(
    spacerangerOut=file.path(td, "outs"),
    format="h5",
    images="lowres")
(spe <- VisiumIO::import(obj))

We also need to parse the original scaling information (i.e., scale factor) for spots and images available in the standard Visium output. We will use this later during conversion.

fnm <- "scalefactors_json.json"
fnm <- file.path(td, "outs", "spatial", fnm)
sfs <- read_json(fnm)

We again use the as_AnnData function from anndataR from the previous example, and convert the SingleCellExperiment-relevant components of the SpatialExperiment object to an AnnData object.

mtx <- as(assay(spe), "dgCMatrix")
assay(spe) <- mtx
(ad <- as_AnnData(spe))

##  InMemoryAnnData object with n_obs × n_vars = 4992 × 18085
##      obs: 'in_tissue', 'array_row', 'array_col', 'sample_id'
##      var: 'ID', 'Symbol', 'Type'
##      uns: 'resources', 'spatialList'
##      layers: 'counts'

We can now populate the uns and obsm components of the AnnData object with spatial coordinates and images. We start with the coordinates.

spatialCoordsNames(spe) <- c("x", "y")
obsm <- list(spatial=spatialCoords(spe))

Now, let’s create the uns component. The list of uns should be composed of as many samples as the images in the SpatialExperiment object. Also, each sample entry in the list should have two elements, one for the image and the other for the scaling information.

# get image metadata
imgdata <- imgData(spe)

# get image
img <- imgRaster(spe)
img <- apply(img, c(1, 2), \(x) col2rgb(x))
img <- aperm(img, perm=c(2, 3, 1))
img <- img / 255

# create uns
uns <- list(images=list(lowres=img), scalefactors=sfs)
uns <- list(spatial=setNames(list(uns), imgdata$sample_id))

Now let’s insert the components to the AnnData object, and write back to an .h5ad file.

ad$obs$library_id <- imgdata$sample_id
ad$obsm <- obsm
ad$uns <- uns
ad$write_h5ad("spe.h5ad")

7.4.2.2 Calling Python

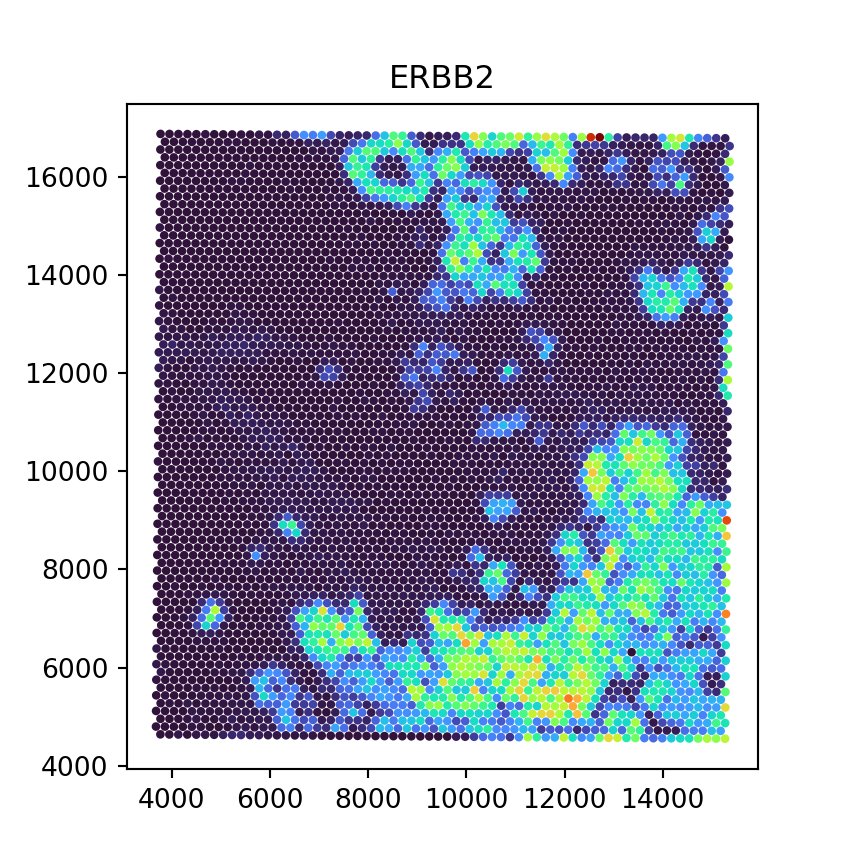

Now that we have converted the SpatialExperiment object to AnnData format, we can run Python code per usual (e.g., continue analysis using squidpy). As a proof of concept, we here visualize an exemplary gene’s counts spatially:

import anndata
import matplotlib
import matplotlib.pyplot as plt

ad = anndata.read_h5ad("spe.h5ad")
ad.var_names = ad.var["Symbol"].astype(str)

xy = ad.obsm["spatial"]
z = ad[:,"ERBB2"].layers["counts"].toarray()

plt.scatter(xy[:,0], xy[:,1], c=z, s=5, cmap="turbo")
plt.gca().set_aspect("equal")
plt.title("ERBB2")

7.5 Appendix

Following are links to several key packages and tools relating to R-Python interoperability, which were mentioned in the sections above:

• anndataR (Deconinck et al. 2025): R package and community project to work with AnnData objects in R, including conversion to and from SingleCell/SpatialExperiment and Seurat objects

• zellkonverter (Zappia et al. 2020): R package to convert between AnnData and SingleCellExperiment objects, as well as reading from and writing to H5AD

• reticulate (Ushey, Allaire, and Tang 2017): R package and framework to call Python and run Python code in R, translate between R and Python objects, and manage virtual and Conda environments

• basilisk (Lun 2022): R package to install and manage Python environments in R packages and sessions

References

Chen, Jiaji G, Joselyn C Chávez-Fuentes, Matthew O’Brien, Junxiang Xu, Edward C Ruiz, Wen Wang, Iqra Amin, et al. 2025. “Giotto Suite: A Multiscale and Technology-Agnostic Spatial Multiomics Analysis Ecosystem.” Nature Methods, 1–13. https://doi.org/10.1038/s41592-025-02817-w.

Deconinck, Louise, Luke Zappia, Robrecht Cannoodt, Martin Morgan, scverse core, Isaac Virshup, Chananchida Sang-Aram, et al. 2025. “anndataR Improves Interoperability Between r and Python in Single-Cell Transcriptomics.” bioRxiv. https://doi.org/10.1101/2025.08.18.669052.

Hao, Yuhan, Tim Stuart, Madeline H Kowalski, Saket Choudhary, Paul Hoffman, Austin Hartman, Avi Srivastava, et al. 2023. “Dictionary Learning for Integrative, Multimodal and Scalable Single-Cell Analysis.” Nature Biotechnology. https://doi.org/10.1038/s41587-023-01767-y.

Janesick, Amanda, Robert Shelansky, Andrew D. Gottscho, Florian Wagner, Stephen R. Williams, Morgane Rouault, Ghezal Beliakoff, et al. 2023. “High Resolution Mapping of the Tumor Microenvironment Using Integrated Single-Cell, Spatial and in Situ Analysis.” Nature Communications 14 (8353). https://doi.org/10.1038/s41467-023-43458-x.

Lun, Aaron. 2022. “Basilisk: A Bioconductor Package for Managing Python Environments.” Journal of Open Source Software 7. https://doi.org/10.21105/joss.04742.

Palla, Giovanni, Hannah Spitzer, Michal Klein, David Fischer, Anna Christina Schaar, Louis Benedikt Kuemmerle, Sergei Rybakov, et al. 2022. “Squidpy: A Scalable Framework for Spatial Omics Analysis.” Nature Methods 19: 171–78. https://doi.org/10.1038/s41592-021-01358-2.

Ushey, Kevin, Joseph J. Allaire, and Yuan Tang. 2017. “Reticulate: Interface to ’Python’.” R Package. https://doi.org/10.32614/CRAN.package.reticulate.

Wolf, F. Alexander, Philipp Angerer, and Fabian J. Theis. 2018. “SCANPY: Large-Scale Single-Cell Gene Expression Data Analysis.” Genome Biology 19 (15). https://doi.org/10.1186/s13059-017-1382-0.

Zappia, Luke, Aaron Lun, Jack Kamm, Robrecht Cannoodt, Gabriel Hoffman, and Marek Cmero. 2020. “anndataR Improves Interoperability Between r and Python in Single-Cell Transcriptomics.” R Package. https://doi.org/10.18129/B9.bioc.zellkonverter.
