LaMa - Latent Markov model toolbox 🛠️

A variety of latent Markov models (Mews, Koslik, and Langrock 2024), including hidden Markov models (HMMs), hidden semi-Markov models (HSMMs), state-space models (SSMs) and continuous-time variants can be formulated and estimated within the same framework via directly maximising the likelihood function using the so-called forward algorithm (Zucchini, MacDonald, and Langrock 2016). Applied researchers often need custom models that standard software does not easily support. Writing tailored R code offers flexibility but suffers from slow estimation speeds. This R package solves these issues by providing easy-to-use functions (written in C++ for speed) for common tasks like the forward algorithm. These functions can be combined into custom models in a Lego-type approach, offering up to 10-20 times faster estimation via standard numerical optimisers. In its most recent iteration, LaMa allows for automatic differentiation with the RTMB package which drastically increases speed and accuracy even more.

The most important families of functions are

• the forward family that calculates the log-likelihood for various different models,

• the tpm family for calculating transition probability matrices,

• the stationary family to compute stationary and periodically stationary distributions

• as well as the stateprobs and viterbi families for local and global decoding.

Installation

You can install the released package version from CRAN with:

install.packages("LaMa")

or the development version from Github:

remotes::install_github("janoleko/LaMa")

Package documentation

To aid in building fully custom likelihood functions, this package contains several vignettes that demonstrate how to simulate data from and estimate a wide range of models using the functions included in this package.

HMMs, from simple to complex:

• Introduction to LaMa
• Inhomogeneous HMMs with covariate effects
• Longitudinal data
• Periodic HMMs
• LaMa and RTMB
• Penalised splines

Other latent Markov model classes:

• State-space models
• Continuous-time HMMs
• Hidden semi-Markov models
• Markov-modulated (marked) Poisson processes

Introductory example: Homogeneous HMM

We analyse the trex data set contained in the package. It contains hourly step lengths of a Tyrannosaurus rex, living 66 million years ago. To these data, we fit a simple 2-state HMM with state-dependent gamma distributions for the step lengths.

library(LaMa)
#> Loading required package: RTMB

head(trex, 3)
#>   tod      step     angle state
#> 1   9 0.3252437        NA     1
#> 2  10 0.2458265  2.234562     1
#> 3  11 0.2173252 -2.262418     1

We start by defining the negative log-likelihood function. This is made really convenient by the functions tpm() which computes the transition probability matrix via the multinomial logit link, stationary() which computes the stationary distribution of the Markov chain and forward() which calculates the log-likelihood via the forward algorithm.

nll = function(par, step){
  # parameter transformations for unconstrained optimisation
  Gamma = tpm(par[1:2]) # rowwise softmax
  delta = stationary(Gamma) # stationary distribution
  mu = exp(par[3:4]) # state-dependent means
  sigma = exp(par[5:6]) # state-dependent sds
  # calculating all state-dependent probabilities
  allprobs = matrix(1, length(step), 2)
  ind = which(!is.na(step))
  for(j in 1:2) allprobs[ind,j] = dgamma2(step[ind], mu[j], sigma[j])
  # simple forward algorithm to calculate log-likelihood
  -forward(delta, Gamma, allprobs)
}

To fit the model, we define the intial parameter vector and numerically optimise the above function using nlm():

par = c(-2,-2,             # initial tpm params (logit-scale)
        log(c(0.3, 2.5)),  # initial means for step length (log-transformed)
        log(c(0.2, 1.5)))  # initial sds for step length (log-transformed)

system.time(
  mod <- nlm(nll, par, step = trex$step)
)
#>    user  system elapsed
#>   0.368   0.010   0.380

Really fast for 10.000 data points!

After tranforming the working (unconstrained) parameters to natural parameters using tpm() and stationary(), we can visualise the results:

# transform parameters to working
(Gamma = tpm(mod$estimate[1:2]))
#>           S1        S2
#> S1 0.8269546 0.1730454
#> S2 0.1608470 0.8391530
(delta = stationary(Gamma)) # stationary HMM
#>       S1       S2
#> 0.481733 0.518267
(mu = exp(mod$estimate[3:4]))
#> [1] 0.3034926 2.5057053
(sigma = exp(mod$estimate[5:6]))
#> [1] 0.2015258 1.4908153

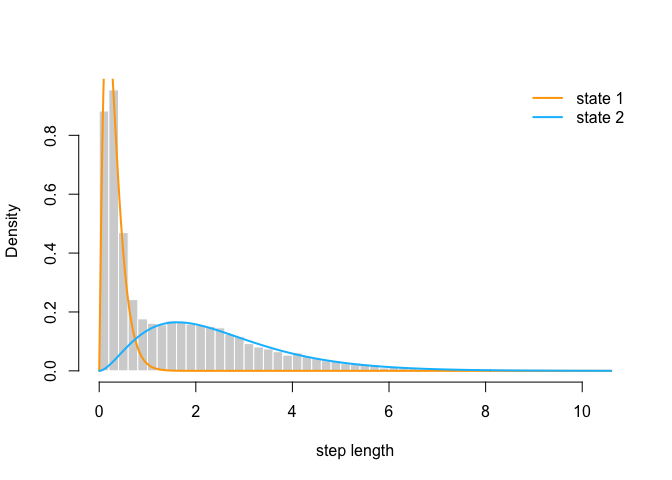

hist(trex$step, prob = TRUE, bor = "white", breaks = 40, main = "", xlab = "step length")
curve(delta[1] * dgamma2(x, mu[1], sigma[1]), add = TRUE, lwd = 2, col = "orange", n=500)
curve(delta[2] * dgamma2(x, mu[2], sigma[2]), add = TRUE, lwd = 2, col = "deepskyblue", n=500)
legend("topright", col = c("orange", "deepskyblue"), lwd = 2, bty = "n", legend = c("state 1", "state 2"))
