quickr

R-CMD-check Codecov test coverage

The goal of quickr is to make your R code run quicker.

Overview

R is an extremely flexible and dynamic language, but that flexibility and dynamicism can come at the expense of speed. This package lets you trade back some of that flexibility for some speed, for the context of a single function.

The main exported function is quick(). Here is how you use it:

library(quickr)

convolve <- quick(function(a, b) {
  declare(type(a = double(NA)),
          type(b = double(NA)))
  ab <- double(length(a) + length(b) - 1)
  for (i in seq_along(a)) {
    for (j in seq_along(b)) {
      ab[i+j-1] <- ab[i+j-1] + a[i] * b[j]
    }
  }
  ab
})

quick() returns a quicker R function. How much quicker? Let’s benchmark it! For reference, we’ll also compare it to a pure-C implementation.

slow_convolve <- function(a, b) {
  declare(type(a = double(NA)),
          type(b = double(NA)))
  ab <- double(length(a) + length(b) - 1)
  for (i in seq_along(a)) {
    for (j in seq_along(b)) {
      ab[i+j-1] <- ab[i+j-1] + a[i] * b[j]
    }
  }
  ab
}

library(quickr)
quick_convolve <- quick(slow_convolve)

convolve_c <- inline::cfunction(
  sig = c(a = "SEXP", b = "SEXP"), body = r"({
    int na, nb, nab;
    double *xa, *xb, *xab;
    SEXP ab;

    a = PROTECT(Rf_coerceVector(a, REALSXP));
    b = PROTECT(Rf_coerceVector(b, REALSXP));
    na = Rf_length(a); nb = Rf_length(b); nab = na + nb - 1;
    ab = PROTECT(Rf_allocVector(REALSXP, nab));
    xa = REAL(a); xb = REAL(b); xab = REAL(ab);
    for(int i = 0; i < nab; i++) xab[i] = 0.0;
    for(int i = 0; i < na; i++)
        for(int j = 0; j < nb; j++)
            xab[i + j] += xa[i] * xb[j];
    UNPROTECT(3);
    return ab;
})")



a <- runif(100000); b <- runif(100)

timings <- bench::mark(
  r = slow_convolve(a, b),
  quickr = quick_convolve(a, b),
  c = convolve_c(a, b),
  min_time = 2
)
timings
#> # A tibble: 3 × 6
#>   expression      min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr> <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 r             1.43s    1.43s     0.702     782KB    0.702
#> 2 quickr       2.63ms    2.7ms   355.        782KB    6.77
#> 3 c            4.92ms   5.22ms   189.        782KB    3.61

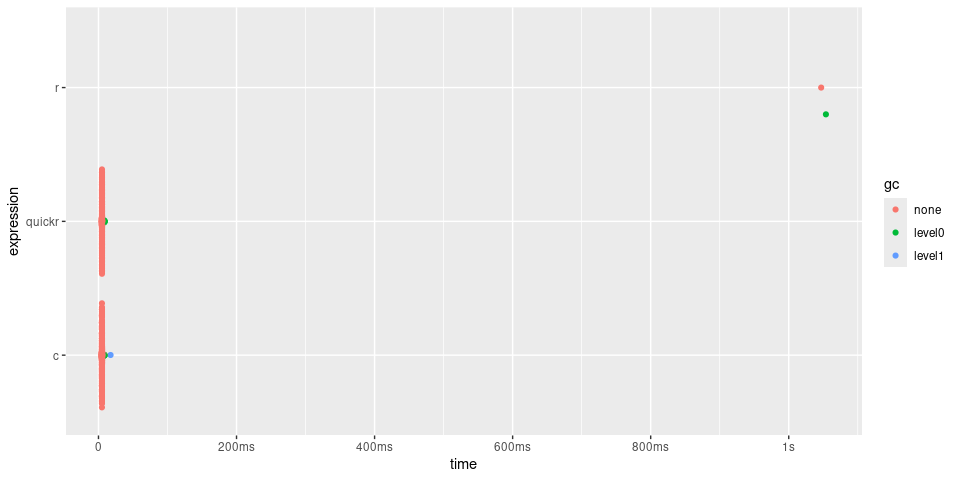

plot(timings) + bench::scale_x_bench_time(base = NULL)

In the case of convolve(), quick() returns a function approximately 200 times quicker, with performance similar to the C function.

quick() can accelerate any R function, with some restrictions:

#>   [1] -            :            !            !=           (
#>   [6] [            [<-          [<<-         {            *
#>  [11] /            &            &&           %*%          %/%
#>  [16] %%           %o%          ^            +            <
#>  [21] <-           <<-          <=           =            ==
#>  [26] >            >=           |            ||           $
#>  [31] Arg          Conj         Fortran      Im           Mod
#>  [36] Re           abs          acos         all          any
#>  [41] array        as.double    as.integer   asin         atan
#>  [46] backsolve    break        c            cat          cbind
#>  [51] ceiling      character    chol         chol2inv     cos
#>  [56] crossprod    declare      diag         dim          double
#>  [61] drop         exp          floor        for          forwardsolve
#>  [66] if           ifelse       integer      is.null      length
#>  [71] log          log10        logical      matrix       max
#>  [76] min          ncol         next         nrow         numeric
#>  [81] outer        print        prod         qr.solve     raw
#>  [86] rbind        rep.int      repeat       rev          runif
#>  [91] seq          seq_along    seq_len      sin          solve
#>  [96] sqrt         stop         sum          svd          t
#> [101] tan          tanh         tcrossprod   trunc        which.max
#> [106] which.min    while

Many of these restrictions are expected to be relaxed as the project matures. However, quickr is intended primarily for high-performance numerical computing, so features like polymorphic dispatch or support for complex or dynamic types are out of scope.

declare(type()) syntax:

The shape and mode of all function arguments must be declared. Local and return variables may optionally also be declared.

declare(type()) also has support for declaring size constraints, or size relationships between variables. Here are some examples of declare calls:

declare(type(x = double(NA))) # x is a 1-d double vector of any length
declare(type(x = double(10))) # x is a 1-d double vector of length 10
declare(type(x = double(1)))  # x is a scalar double

declare(type(x = integer(2, 3)))  # x is a 2-d integer matrix with dim (2, 3)
declare(type(x = integer(NA, 3))) # x is a 2-d integer matrix with dim (<any>, 3)

# x is a 4-d logical matrix with dim (<any>, 24, 24, 3)
declare(type(x = logical(NA, 24, 24, 3)))

# x and y are 1-d double vectors of any length
declare(type(x = double(NA)),
        type(y = double(NA)))

# x and y are 1-d double vectors of the same length
declare(
  type(x = double(n)),
  type(y = double(n)),
)

# x and y are 1-d double vectors, where length(y) == length(x) + 2
declare(type(x = double(n)),
        type(y = double(n+2)))

Tip: declare shapes as specifically as you can. quickr uses these size constraints both for compile-time checking and for choosing more efficient implementations. For example, if you know a matrix is square, declare it as type(A = double(n, n)) (not double(n, k)). That can allow quickr to use a faster code path for operations like solve(A, b). If the compiler can’t prove a matrix is square, it may need to fall back to a more general rectangular solver.

More examples:

viterbi

The Viterbi algorithm is an example of a dynamic programming algorithm within the family of Hidden Markov Models (https://en.wikipedia.org/wiki/Viterbi_algorithm). Here, quick() makes viterbi() approximately 50 times faster.

slow_viterbi <- function(observations, states, initial_probs, transition_probs, emission_probs) {
    declare(
      type(observations = integer(num_steps)),
      type(states = integer(num_states)),
      type(initial_probs = double(num_states)),
      type(transition_probs = double(num_states, num_states)),
      type(emission_probs = double(num_states, num_obs)),
    )

    trellis <- matrix(0, nrow = length(states), ncol = length(observations))
    backpointer <- matrix(0L, nrow = length(states), ncol = length(observations))
    trellis[, 1] <- initial_probs * emission_probs[, observations[1]]

    for (step in 2:length(observations)) {
      for (current_state in 1:length(states)) {
        probabilities <- trellis[, step - 1] * transition_probs[, current_state]
        trellis[current_state, step] <- max(probabilities) * emission_probs[current_state, observations[step]]
        backpointer[current_state, step] <- which.max(probabilities)
      }
    }

    path <- integer(length(observations))
    path[length(observations)] <- which.max(trellis[, length(observations)])
    for (step in seq(length(observations) - 1, 1)) {
      path[step] <- backpointer[path[step + 1], step + 1]
    }

    out <- states[path]
    out
}

quick_viterbi <- quick(slow_viterbi)

set.seed(1234)
num_steps <- 16
num_states <- 8
num_obs <- 16

observations <- sample(1:num_obs, num_steps, replace = TRUE)
states <- 1:num_states
initial_probs <- runif (num_states)
initial_probs <- initial_probs / sum(initial_probs)  # normalize to sum to 1
transition_probs <- matrix(runif (num_states * num_states), nrow = num_states)
transition_probs <- transition_probs / rowSums(transition_probs)  # normalize rows
emission_probs <- matrix(runif (num_states * num_obs), nrow = num_states)
emission_probs <- emission_probs / rowSums(emission_probs)  # normalize rows

timings <- bench::mark(
  slow_viterbi = slow_viterbi(observations, states, initial_probs,
                              transition_probs, emission_probs),
  quick_viterbi = quick_viterbi(observations, states, initial_probs,
                                transition_probs, emission_probs)
)
timings
#> # A tibble: 2 × 6
#>   expression         min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr>    <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 slow_viterbi  170.18µs 186.23µs     5011.    1.59KB     12.4
#> 2 quick_viterbi   2.44µs   2.72µs   349107.        0B      0

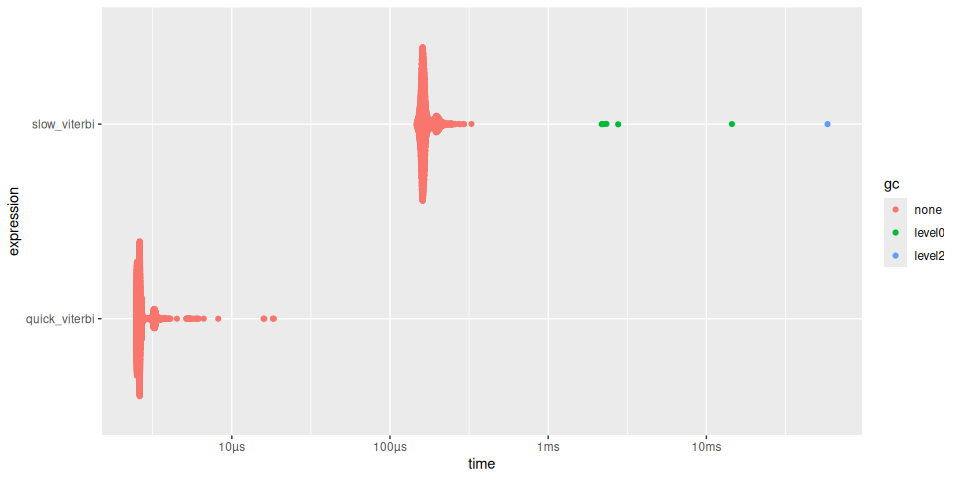

plot(timings)

Diffusion simulation

Simulate how heat spreads over time across a 2D grid, using the finite difference method applied to the Heat Equation.

Note the use of local closures within the quick function. Here, quick() returns a function approximately 20 times faster. The speedup is relatively modest because the core operation of computing the laplacian is already expressed as a vectorized operation. If we were instead comparing against for loops that operate on individual array elements, the speedup would be much more substantial. In general, idiomatic vectorized R code is quite fast already!

diffuse_heat <- function(nx, ny, dx, dy, dt, k, steps) {
  declare(
    type(nx = integer(1)),
    type(ny = integer(1)),
    type(dx = integer(1)),
    type(dy = integer(1)),
    type(dt = double(1)),
    type(k = double(1)),
    type(steps = integer(1))
  )

  temp <- matrix(0, nx, ny)
  temp[nx %/% 2L, ny %/% 2L] <- 100

  apply_boundary_conditions <- function(temp) {
    temp[1, ] <- 0
    temp[nx, ] <- 0
    temp[, 1] <- 0
    temp[, ny] <- 0
    temp
  }

  update_temperature <- function(temp) {
    temp_new <- temp

    i <- 2:(nx - 1)
    j <- 2:(ny - 1)

    laplacian <-
      (temp[i + 1, j] - 2 * temp[i, j] + temp[i - 1, j]) / dx ^ 2 +
      (temp[i, j + 1] - 2 * temp[i, j] + temp[i, j - 1]) / dy ^ 2

    temp_new[i, j] <- temp[i, j] + k * dt * laplacian
    temp_new
  }

  for (step in seq_len(steps)) {
    temp <- temp |>
      apply_boundary_conditions() |>
      update_temperature()
  }

  temp
}


quick_diffuse_heat <- quick(diffuse_heat)

# Parameters
nx <- 100L      # Grid size in x
ny <- 100L      # Grid size in y
dx <- 1L        # Grid spacing
dy <- 1L        # Grid spacing
dt <- 0.01      # Time step
k <- 0.1        # Thermal diffusivity
steps <- 500L   # Number of time steps

timings <- bench::mark(
  diffuse_heat = diffuse_heat(nx, ny, dx, dy, dt, k, steps),
  quick_diffuse_heat = quick_diffuse_heat(nx, ny, dx, dy, dt, k, steps)
)
#> Warning: Some expressions had a GC in every iteration; so filtering is
#> disabled.
summary(timings, relative = TRUE)
#> Warning: Some expressions had a GC in every iteration; so filtering is
#> disabled.
#> # A tibble: 2 × 6
#>   expression           min median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr>         <dbl>  <dbl>     <dbl>     <dbl>    <dbl>
#> 1 diffuse_heat        13.6   16.8       1       4893.      Inf
#> 2 quick_diffuse_heat   1      1        16.7        1       NaN

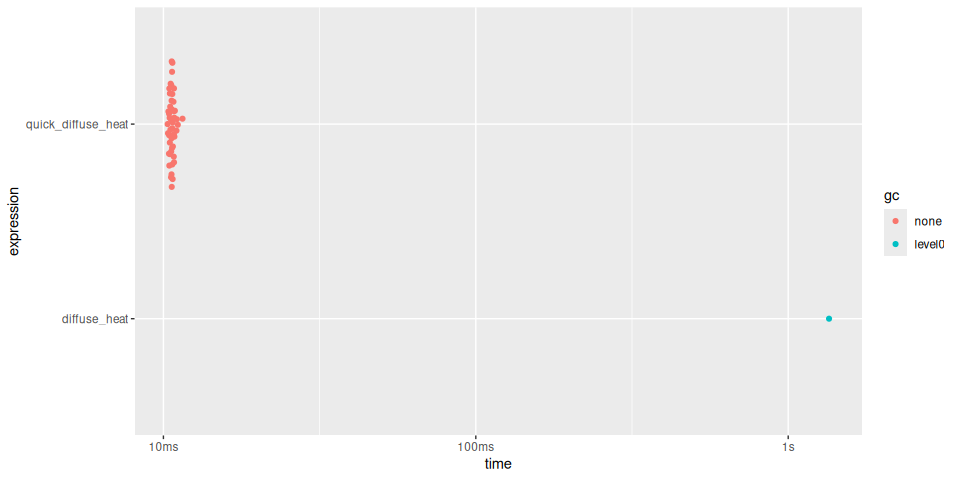

plot(timings)

Rolling Mean

Here is quickr used to calculate a rolling mean. The CRAN package RcppRoll already provides a highly optimized rolling mean, which we include in the benchmarks for comparison.

slow_roll_mean <- function(x, weights, normalize = TRUE) {
  declare(
    type(x = double(NA)),
    type(weights = double(NA)),
    type(normalize = logical(1))
  )
  out <- double(length(x) - length(weights) + 1)
  n <- length(weights)
  if (normalize)
    weights <- weights/sum(weights)*length(weights)

  for(i in seq_along(out)) {
    out[i] <- sum(x[i:(i+n-1)] * weights) / length(weights)
  }
  out
}

quick_roll_mean <- quick(slow_roll_mean)

x <- dnorm(seq(-3, 3, len = 100000))
weights <- dnorm(seq(-1, 1, len = 100))

timings <- bench::mark(
  r = slow_roll_mean(x, weights),
  rcpp = RcppRoll::roll_mean(x, weights = weights),
  quickr = quick_roll_mean(x, weights = weights)
)
#> Warning: Some expressions had a GC in every iteration; so filtering is
#> disabled.
timings
#> # A tibble: 3 × 6
#>   expression      min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr> <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 r           187.9ms  292.3ms      3.42  124.24MB    10.3
#> 2 rcpp        20.12ms   20.4ms     48.9     4.46MB     0
#> 3 quickr       6.82ms    7.2ms    133.    781.35KB     1.99

timings$expression <- factor(names(timings$expression), rev(names(timings$expression)))

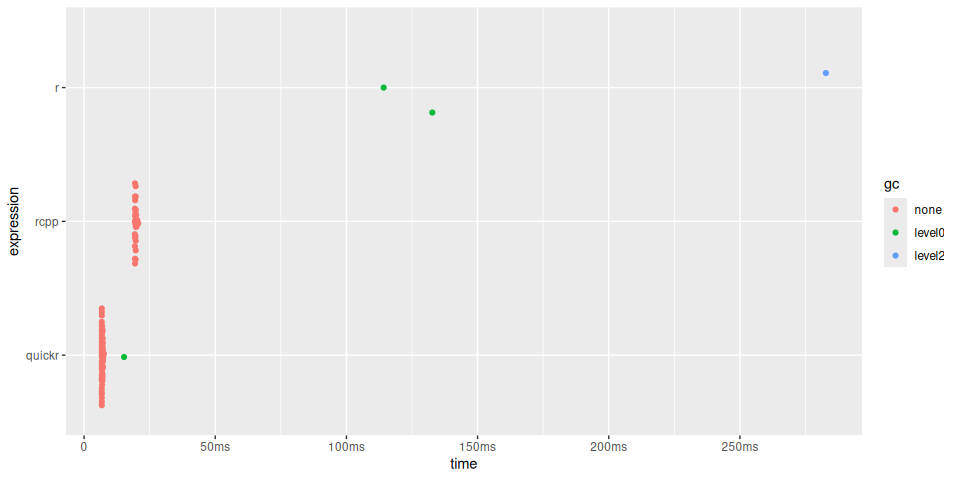

plot(timings) + bench::scale_x_bench_time(base = NULL)

Linear regression benchmark (fastLm)

quickr supports a variety of matrix operations from base R, including most of the common linear algebra functions like %*%, crossprod(), tcrossprod(), solve(), and chol(). Performance is generally similar to running the same code in R itself, but as you start to chain multiple operations in a function, you may see speed-ups due to reduced interpreter overhead. Actual performance depends on the BLAS/LAPACK libraries linked to your R build (e.g. OpenBLAS, MKL, Accelerate).

To illustrate, here is a benchmark showing a fastLm-style implementation comparing base R, quickr, and (for reference) a compiled RcppArmadillo implementation. The fastLm function is adapted from the README of the RcppArmadillo project.

# reference implementation
fast_lm_ref <- function(X, y) {
  fit <- lm(y ~ X - 1)
  s <- summary(fit)

  list(
    coefficients = unname(coef(fit)),
    stderr = unname(s$coefficients[, "Std. Error"]),
    df.residual = fit$df.residual
  )
}

# RcppArmadillo implementation
Rcpp::sourceCpp(
code = '
#include <RcppArmadillo/Lighter>
// [[Rcpp::depends(RcppArmadillo)]]

// [[Rcpp::export]]
Rcpp::List fast_lm_rcpp_armadillo(const arma::mat& X, const arma::colvec& y) {
    int n = X.n_rows, k = X.n_cols;

    arma::colvec coef = arma::solve(X, y);     // fit model y ~ X
    arma::colvec res  = y - X*coef;            // residuals
    double s2 = arma::dot(res, res) / (n - k); // std.errors of coefficients
    arma::colvec std_err = arma::sqrt(s2 * arma::diagvec(arma::pinv(arma::trans(X)*X)));

    return Rcpp::List::create(Rcpp::Named("coefficients") = coef,
                              Rcpp::Named("stderr")       = std_err,
                              Rcpp::Named("df.residual")  = n - k);
}')

# Plain R fast-path
fast_lm_r <- function(X, y) {
  declare(
    type(X = double(n, k)),
    type(y = double(n))
  )

  # analogous to arma::pinv()
  pinv_svd <- function(A, tol = NULL) {
    s <- svd(A)
    if (is.null(tol)) {
      tol <- max(dim(A)) * max(s$d) * .Machine$double.eps
    }
    d_inv <- ifelse(s$d > tol, 1 / s$d, 0)
    s$v %*% (d_inv * t(s$u))
  }

  df_residual <- nrow(X) - ncol(X)

  coef <- qr.solve(X, y) # analogous to arma::solve(X, y)
  res <- y - X %*% coef
  s2 <- drop(crossprod(res)) / df_residual

  XtX <- crossprod(X)
  XtX_pinv <- pinv_svd(XtX) # analogous to arma::pinv()
  std_err <- sqrt(s2 * diag(XtX_pinv))

  list(
    coefficients = coef,
    stderr = std_err,
    df.residual = df_residual
  )
}

# quickr func
quick_fast_lm <- quick(fast_lm_r)

Benchmark

set.seed(1)

beta <- c(0.5, 1.0, -2.0, 10, 5)
X <- cbind(1, matrix(rnorm(3 * 10^5), ncol = 4))
y <- as.vector(X %*% beta + rnorm(nrow(X), sd = 2))

timings <- bench::mark(
  `reference`     = fast_lm_ref(X, y),
  `RcppArmadillo` = fast_lm_rcpp_armadillo(X, y),
  `plain R`       = fast_lm_r(X, y),
  `quickr`        = quick_fast_lm(X, y)
)

timings
#> # A tibble: 4 × 6
#>   expression         min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr>    <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 reference      65.18ms  65.41ms      13.9    29.6MB     13.9
#> 2 RcppArmadillo   5.56ms   7.86ms     110.         0B      0
#> 3 plain R          5.1ms   8.82ms      66.7    13.2MB     16.0
#> 4 quickr          2.22ms   2.66ms     256.         0B      0
plot(timings) + ggplot2::scale_y_discrete(limits = rev(c(
  "reference", "RcppArmadillo", "plain R", "quickr"
)))

Parallelize loops with OpenMP

Use declare(parallel()) to annotate the next for loop or sapply() call for OpenMP parallelization. Parallel loops must be order-independent: avoid shared-state updates or inter-iteration dependencies. OpenMP adds overhead, so it can be slower for small workloads, but substantially faster for larger ones.

Here is a concrete example using colSums(). At smaller sizes, the quickr serial version is fastest (even faster than base colSums()). As sizes grow, the two serial versions converge, and the parallel version pulls ahead. However, the speedup is not linear with core count (e.g., with 12 cores, the speedup is closer to ~6x).

colSums_quick_parallel <- quick(function(x) {
  declare(type(x = double(NA, NA)))
  declare(parallel())
  sapply(seq_len(nrow(x)), \(r) sum(x[, r]))
})

colSums_quick <- quick(function(x) {
  declare(type(x = double(NA, NA)))
  sapply(seq_len(nrow(x)), \(r) sum(x[, r]))
})

r <- bench::press(
  n = 2^(4:14),
  {
    m <- array(runif(n * n), c(n, n))
    bench::mark(
      parallel = colSums_quick_parallel(m),
      quick = colSums_quick(m),
      base = colSums(m),
    )
  },
  .quiet = TRUE
)

library(ggplot2)
library(dplyr, warn.conflicts = FALSE)

r |>
  mutate(.before = 1,
         desc = attr(expression, "description")) |>
  select(desc, n, median) |>
  ggplot(aes(x = n, y = median, color = desc)) +
  geom_point() + geom_line() +
  scale_x_log10() + bench::scale_y_bench_time()

quickr does not set OpenMP thread counts. To control threads, set OMP_NUM_THREADS (and optionally OMP_THREAD_LIMIT or OMP_DYNAMIC) before calling a compiled function, e.g. Sys.setenv(OMP_NUM_THREADS = "4").

Using quickr in an R package

When called in a package, quick() will pre-compile the quick functions and place them in the ./src directory. Run devtools::load_all() or quickr::compile_package() to ensure that the generated files in ./src and ./R are in sync with each other.

In a package, you must provide a function name to quick(). For example:

my_fun <- quick(name = "my_fun", function(x) ....)

Installation

You can install quickr from CRAN with:

install.packages("quickr")

You can install the development version of quickr from GitHub with:

# install.packages("pak")
pak::pak("t-kalinowski/quickr")

You will also need a C and Fortran compiler, preferably the same ones used to build R itself.

On macOS:

On Windows:

On Linux:
