civ
is an implementation of the categorical instrumental
variable estimator proposed by Wiemann (2023; arxiv:2311.17021).
civ
allows for optimal instrumental variable estimation in
settings with relatively few observations per category as seen in many
economic applications including judge IV designs. To obtain valid
inference in these challenging empirical settings, civ
leverages a regularization assumption that implies existence of a latent
categorical variable with fixed finite support achieving the same first
stage fit as the observed instrument.
See the corresponding working paper Optimal Categorical Instrumental Variables for further discussion and theoretical details.
Install the latest development version from GitHub (requires devtools package):
if (!require("devtools")) {
install.packages("devtools")
}::install_github("thomaswiemann/civ", dependencies = TRUE) devtools
Install the latest public release from CRAN:
install.packages("civ")
To illustrate civ
on a simple example, consider the data
generating process from the simulation of Wiemann (2023): For \(i = 1, \ldots, n\), the data generating
process is given by \(Y_i = D_i \pi_{0}(X_i) +
X_i\beta_0 + U_i\) and \(D_i= m_0(Z_i)
+ X_i\gamma_0 + V_i,\) where \((U_i,
V_i)\) are mean-zero multivariate normal with \(\sigma_U^2 = 1\), \(\sigma_V^2 = 0.9\), and \(\sigma_{UV} = 0.6\). \(D_i\) is a scalar-valued endogenous
variable, \(X_i\sim\textrm{Bernoulli}(0.5)\) is a
binary covariate and \(\beta_0 = \gamma_0 =
0\), and \(Z_i\) is the
categorical instrument taking values in \(\{1,
\ldots, 40\}\) with equal probability. To introduce correlation
between \(Z_i\) and \(X_i\), I further set \(\Pr(Z_i \text{ is odd}\vert X_i = 0) = \Pr(Z_i
\text{ is even}\vert X_i = 1) = 0\). The optimal instrument \(m_0\) is constructed by first partitioning
the support of \(Z_i\) into two equal
subsets and then assigning either \(0\)
or \(C\) as values. The scalar \(C\) is chosen such that the variance of the
first stage variable is fixed to 1 and the concentration parameter for
\(n=800\) is \(\mu^2 = 180\). The data generating process
allows for individual treatment effects \(\pi_0(X_i)\) to differ with covariates.
Here, \(\pi_0(X_i) = 1 + 0.5(1 -
2X_i)\) so that the expected treatment effect is simply \(E\pi_0(X) = 1.\)
The code snippet below draws \(n=800\) observations from this data generating process.
# Set seed
set.seed(51944)
# Sample parameters
= 800 # sample size
nobs = 0.858 # first stage coefficient
C = 0.9 # first stage error
sgm_V <- c(-0.5, 0.5) + 1 # second stage effects
tau_X # Sample controls and instrument
<- sample(1:2, nobs, replace = T)
X <- model.matrix(~ 0 + as.factor(sample(1:20, nobs, replace = T)):as.factor(X))
Z <- Z %*% c(1:ncol(Z))
Z # Create the low-dimensional latent instrument
<- Z %% 2 # underlying latent instrument
Z0 # Draw first and second stage errors
<- matrix(rnorm(2 * nobs, 0, 1), nobs, 2) %*%
U_V chol(matrix(c(1, 0.6, 0.6, sgm_V), 2, 2))
# Draw treatment and outcome variables
<- Z0 * C + U_V[, 2]
D <- D * tau_X[X] + U_V[, 1] y

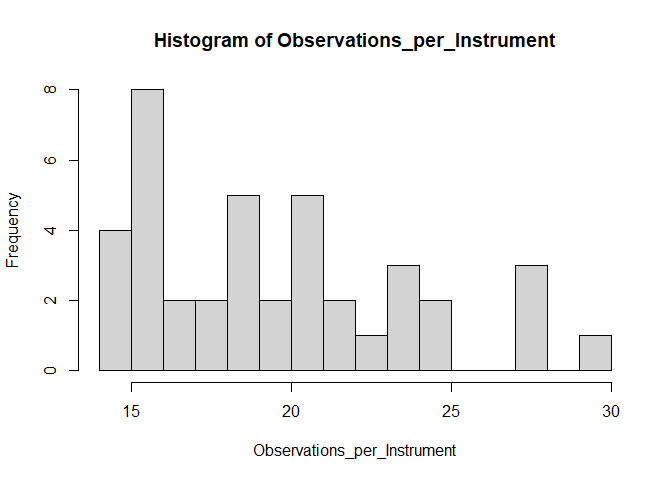

In the generated sample, the observed instrument takes 40 values with varying numbers of observations per instrument:
= table(Z)
Observations_per_Instrument hist(Observations_per_Instrument, breaks = 20)
Using only the observed instrument Z
, the goal is to
estimate the in-sample average treatment effect:
mean(tau_X[X])
#> [1] 1.0325
We load the civ
package and estimate the categorical
instrumental variable estimator where the first stage is restricted to
K=2
support points. We also load the AER
package to compute heteroskedasticity robust standard errors. See also
?civ
and ?summary.civ
for details.
# Load dependencies
library(civ)
library(AER)
#> Warning: package 'AER' was built under R version 4.3.1
#> Loading required package: car
#> Warning: package 'car' was built under R version 4.3.1
#> Loading required package: carData
#> Warning: package 'carData' was built under R version 4.3.1
#> Loading required package: lmtest
#> Warning: package 'lmtest' was built under R version 4.3.1
#> Loading required package: zoo
#> Warning: package 'zoo' was built under R version 4.3.1
#>
#> Attaching package: 'zoo'
#> The following objects are masked from 'package:base':
#>
#> as.Date, as.Date.numeric
#> Loading required package: sandwich
#> Warning: package 'sandwich' was built under R version 4.3.1
#> Loading required package: survival
# Compute CIV with K=2 and conduct inference
<- civ(y = y, D = D, Z = Z, X = as.factor(X), K = 2)
civ_fit <- summary(civ_fit, vcov = vcovHC(civ_fit$iv_fit, type = "HC1")) civ_res
The CIV estimate and the corresponding standard error are shown below. The associated 95% confidence interval covers the true effect as indicated by the t-value of less than 1.96.
c(Estimate = civ_res$coef[2, 1], "Std. Error" = civ_res$coef[2, 2],
"t-val." = abs(civ_res$coef[2, 1]-mean(tau_X[X]))/civ_res$coef[2, 2])
#> Estimate Std. Error t-val.
#> 1.0063143 0.1086868 0.2409285
The key idea of CIV is to leverage a latent categorical variable
Z0
with fewer categories that achieves the same
population-level fit in the first stage as the observed instrument
Z
. Under the assumption that the support of the latent
categorical variable is fixed with finite cardinality, it is possible to
estimate a mapping from the observed categories to the latent
categories. This estimated mapping can then be used to simplify the
optimal instrumental variable estimator to a finite dimensional
regression problem. Asymptotic properties of the CIV estimator then
follow if the first-stage mapping can be estimated at a sufficient
rate.
Wiemann (2023) provides sufficient conditions for estimation of the
mapping at exponential rate using a K-Conditional-Means (KCMeans)
estimator. The proposed KCMeans estimator is exact and computes very
quickly with time polynomial in the number of observed categories, thus
avoiding heuristic solution approaches otherwise associated with
KMeans-type problems. See also the kcmeans
R
package for additional details.
In the considered data generating process, the underlying optimal
instrument Z0
has two support points. In the first step,
CIV attempts to map values of the observed instrument to these support
points. The below code snippet shows that is largely succeeds in doing
so: Among the 800 observations, only 16 observations are
missclassified.
# Compute the clustering of instrument values
<- predict(civ_fit$kcmeans_fit, Z, clusters=T) - 1
Z0_hat
# Compare clusters with the true underlying instrument Z0
<- ((Z0 - Z0_hat) != 0)
missclassified sum(missclassified)
#> [1] 16
Thanks to classifying values of the instrument in the first step, the IV estimation problem substantially simplifies: Instead of using a categorical instrument with 40 values, CIV is equivalent to using the constructed binary instrument:
# Equivalent CIV using the constructed binary instrument
<- ivreg(y ~ D + as.factor(X) | as.factor(Z0_hat) + as.factor(X))
civ_fit_2 <- summary(civ_fit_2, vcov = vcovHC(civ_fit_2, type = "HC1"))$coef
civ_res_2
# Equivalent CIV results:
c(Estimate = civ_res_2[2, 1], "Std. Error" = civ_res_2[2, 2],
"t-val." = abs(civ_res_2[2, 1]-mean(tau_X[X]))/civ_res_2[2, 2])
#> Estimate Std. Error t-val.
#> 1.0063143 0.1086868 0.2409285
Since correct classification requires very few observations per instrument, CIV is nearly identical to the infeasible oracle estimator that presumes knowledge of the low-dimensional optimal instrument Z0:
# Compute the infeasible oracle estimator
<- ivreg(y ~ D + as.factor(X) | as.factor(Z0) + as.factor(X))
oracle_fit <- summary(oracle_fit, vcov = vcovHC(oracle_fit, type = "HC1"))
oracle_res
# Infeasible oracle results:
c(Estimate = oracle_res$coef[2, 1], "Std. Error" = oracle_res$coef[2, 2],
"t-val." = abs(oracle_res$coef[2, 1]-mean(tau_X[X]))/oracle_res$coef[2, 2])
#> Estimate Std. Error t-val.
#> 1.0184144 0.1065979 0.1321376
To provide some evidence for the practical benefits of CIV over alternative estimators, consider estimating three commonly considered alternatives: two-stage least squares (TSLS), the post-Lasso IV estimator of Belloni et al. (2012), and an IV estimator that uses random forests in the first stage.
Key takeaways from the results: TSLS, post-Lasso IV, and random forest-based IV are heavily biased.
For extensive finite-sample comparisons, see Wiemann (2023).
The TSLS estimate is substantially more biased than the CIV estimate.
# Estimate two-stage least squares
<- ivreg(y ~ D + as.factor(X) | as.factor(Z) + as.factor(X))
tsls_fit <- summary(tsls_fit, vcov = vcovHC(tsls_fit, type = "HC1"))$coef
tsls_res
# TSLS results:
c(Estimate = tsls_res[2, 1], "Std. Error" = tsls_res[2, 2],
"t-val." = abs(tsls_res[2, 1]-mean(tau_X[X]))/tsls_res[2, 2])
#> Estimate Std. Error t-val.
#> 1.11620022 0.08664093 0.96605856
The post-Lasso IV estimator of Belloni et al. (2012) is heavily biased and the corresponding 95% confidence interval does not cover the in-sample treatment effect as indicated by the t-value of more than 1.96.
# Estimate post-Lasso IV with the plug-in penalty
library(hdm)
#> Warning: package 'hdm' was built under R version 4.3.1
<- rlassoIV(y ~ D + as.factor(X) | as.factor(Z) + as.factor(X),
hdm_fit select.X = F)
<- c(hdm_fit$coefficients, hdm_fit$se)
hdm_res
# post-Lasso IV results:
c(Estimate = hdm_res[1], "Std. Error" = hdm_res[2],
"t-val." = abs(hdm_res[1]-mean(tau_X[X]))/hdm_res[2])
#> Estimate.D Std. Error.D t-val..D
#> 0.7717395 0.1059556 2.4610350
The random forest-based IV estimator is heavily biased and the corresponding 95% confidence interval does not cover the in-sample treatment effect as indicated by the t-value of more than 1.96.
library(ranger)
#> Warning: package 'ranger' was built under R version 4.3.1
<- data.frame(D = D, Z = as.factor(Z), X = as.factor(X))
df <- predict(ranger(D ~ Z + X, data = df), df)$predictions
mhat <- ivreg(y ~ D + as.factor(X) | mhat + as.factor(X))
ranger_fit <- summary(ranger_fit, vcov = vcovHC(ranger_fit, type = "HC1"))$coef
ranger_res
c(Estimate = ranger_res[2, 1], "Std. Error" = ranger_res[2, 2],
"t-val." = abs(ranger_res[2, 1]-mean(tau_X[X]))/ranger_res[2, 2])
#> Estimate Std. Error t-val.
#> 1.25887072 0.09053253 2.50043521
Belloni A, Chen D, Chernozhukov V, Hansen C (2018). “Sparse Models and Methods for Optimal Instruments With an Application to Eminent Domain.” Econometrica, 80(6), 2369-2429.
Wiemann T (2023). “Optimal Categorical Instruments.” https://arxiv.org/abs/2311.17021
